Application Name
IC-998 COMPACTC
Product Number
IC-998 COMPACTC
Product Description

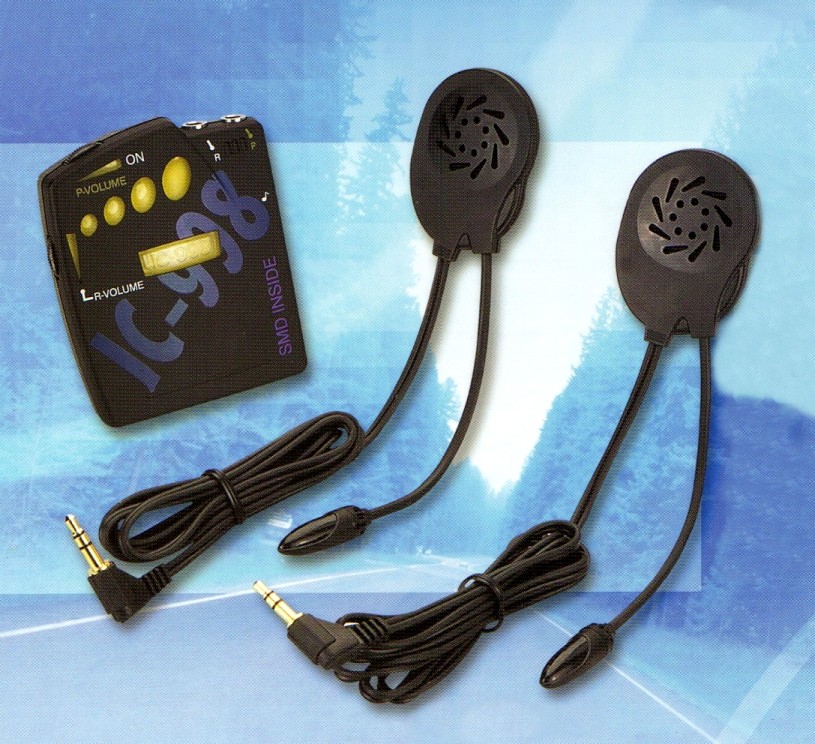

IC-998 COMPACTC
MOTORCYCLE INTERCOM
HIGH-PERFORMANCE
DUAL-CHANNEL
POWER SOURCE¡GUM-4(ALKALINE)x2
BATTERY LIFE¡GOVER 30 HOURS
S/N RATIO¡GMORE THAN 60DB
RATED OUTPUT¡G160mWx2
OPERATING TEMPERATURE¡G-20¢J To 50¢J
FREQUENCY RESPONSE¡G50-20,000 Hz
INPUT CIRCUIT¡G-62dB ¡Ó1dB 2.2K£[ UNBALANCE
OUTPUT CIRCUIT¡G8£[ 300mW
DIMENSIONS¡G67x57x13.2mm
WEIGHT OF MAIN UNIT¡G25.5g
HEADSET¡G4.8mmx45mm
Availability:
Date modified: 2008/10/21
|
|
